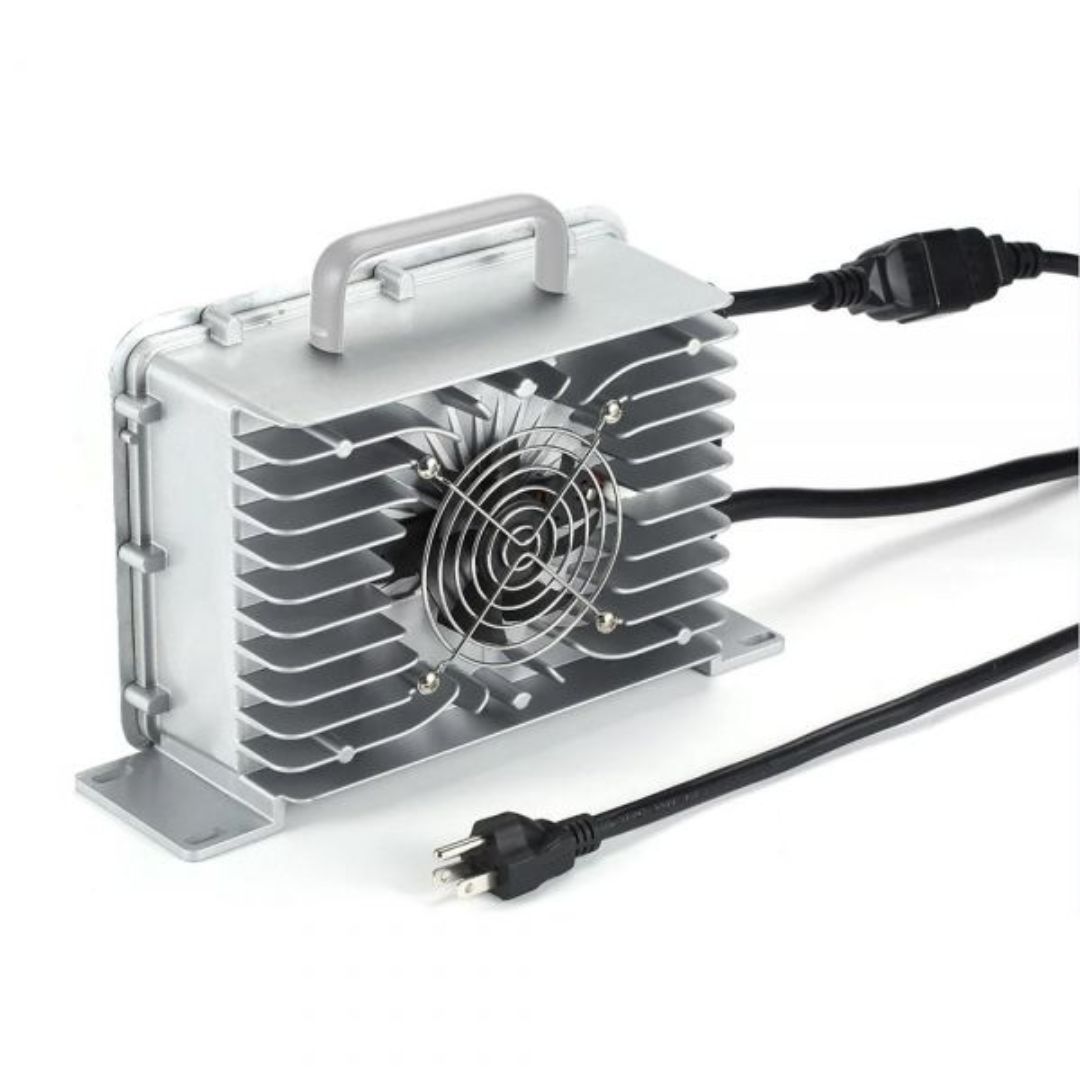

RoyPow baterijski punjač 36V 22A

Proizvođač: RoyPow

Broj dijela proizvođača: RP4222-LFP

Budite prvi koji će napisati osvrt za ovaj proizvod

€535,00

-Akumulator RoyPow LiFePo4 baterija
-36V
-napon 42V
-snaga 22A
-Single phase,
-IP65,
-težina 4 kg

Dostupnost: 2 na zalihi

Količina:

+ -

Pregled
Recenzije
Kontaktirajte nas

RP4222-LFP Charger is an economic, high quality 100-240V AC balance charger, designed for charging our RoyPow LFP batteries.

Charging program consists of 3 steps: constant current, constant voltage and float charging.

The chargers provide protections against overload, over-voltage, over-heating, short circuit and reverse polarity connections.

SPECIFICATIONS

DC Output
Maximum DC output voltage	43.5V
Maximum DC output current	22 A
Maximum DC output power	1000 W
Nominal DC output current	22A @ 110 VAC, 22A @ 220 VAC 22A @ 110 VAC
Battery type	Lithium
AC Input
AC input voltage range	85-270 VAC
Nominal AC input voltage	100-240 VAC
Nominal AC input frequency	50 / 60 Hz
Maximum AC input current	16A
Nominal AC input current	11A
Power factor	>0.9
Mechanical
Dimensions	28.2 x 16.7 x 11.4 cm (11.1 x 6.57 x 4.5”)
Weight	9.3 lbs （4.22 kg）
Cooling	Active cooling with fan
Environmental
Enclosure	IP66
Humidity	5% － 95%
Operating temperature	-40℃ to +65℃ (-40oF to 149oF)，Derated at >40℃ (104℉)
Storage temperature	-40℃ to +85℃ (-40°F to 185°F)

EXPLANATION OF LED STATUS

LED	Charger Status
1. LED solid green.	1. The charger is ready to charge, or Charging is complete.
2. LED Green blinking.	2. The charger is charging.
3. Red light blinking quickly.	3. Input power failure.
4. LED Red and green blinking alte rnately.	4. The output is short-circuited or the positive and negative poles of the battery are reversed.
5. Red light blinks 2 times, interval 1 second, blinks 2 times again.	5. Charger temperature overheating alarm.
6. Red light blinks 3 times, interval 1 second, and then blinks 3 times.	6. Output overcurrent alarm.
7. Red light blinks 4 times, interval 1 second, then blinks 4 times.	7. Output over-voltage alarm.

If there is a problem with the charger, the fan will stop rotating and the LED indicator will blink red light to give an error warning. Please disconnect the charger from the wall socket.

WARNING AND SAFETY NOTES

RP4222-LFP Charger is suitable for charging Roypow LFP batteries, charging other batteries may cause fire or explosion.

The allowable AC input voltage is 100-240V AC. Never connect it to any other voltage.

Never leave the charger unattended when it is connected to its power supply.

Never place the charger and batteries connected to it on any form of flammable surface.

Neveroperate the charger in the vicinity of inflammable material or gas.

Ensure that there is an unrestricted airflow to and from the charger's cooling slots.

Never place thecharger on a carpet or similar surface.

Take great care to maintain correct battery polarity, and avoid shot-circuit.

Read the batterymanufacturer's instructions and adhere to them strictly.
